The Equi-Trek Star Treka 2 Horse Float is a spacious for your horse and has luxury overnight accommodation.
This stunning horse float features the latest in aerodynamic body styling which is unique to the ever-developing range of Equi-Trek trailers. This horse area is fitted out to a high standard with a padded partition, groom’s locker and tack locker. In conjunction with a spacious living area with a small double bed and a dinette layout plus options such as a Shower, Gas Heating and Gas Hot Water this trailer is perfect for weekends away.

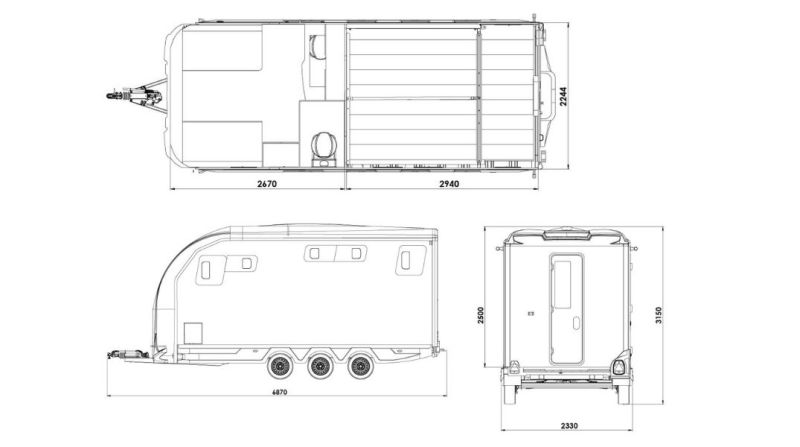

Equi Trek Star Treka Specifications

Internal Dimensions Star Treka
External Dimensions Star Treka
Horse Area Ft.ins m Body Area Ft.ins m
Length  9’8″ 2.950 Length  20’8″ 6.300
Width  6’5″ 1.960 Width  6’9″ 2.060
Height 7’6″ 2.290 Height 9’7″ 2.930
Living Area Ft.ins m
 Length   6’9″  2.060
 Width  6’5″  1.960
Approx. Weight
Unladen Weight
(excludes fitted optional extras)
1900kg
Gross weight 3500kg

Main Body

  • Strong galvanized steel chassis for long maintenance-free life.
  • Tri-Axle Set Up with Independant Suspension
  • Ball Hitch- Features a built in lock including auto reverse.
  • Composite rubber kick boards in horse area.
  • Six fully braked wheels with low profile tyres and spare included.
  • Aluminium plank floor covered with heavy duty rubber in horse area

Horse Area

  • Partition: Fully adjustable padded partition with head divider and rubber skirt to floor.
  • Lighting: Two interior lights.
  • Grooms Door: Grooms door with pull out step.
  • Ramp doors: White easy clean safety loading doors.
  • Tack Locker: With external locking door and two saddle and bridle racks.
  • Ventilation: Five opening windows and skylight roof vent.
  • Tie rings: Two horse tie rings, two hay net tie rings and two external tie rings.
  • Ramp: Large, low gas assisted ramp for easy lifting covered with rubber matting with alloy tread rails.
  • Breast Bar: Full width padded breast bar.
  • Grooms Locker: With external locking door, shelf and horse shower hose.

Living Arena

  • Seating/Sleeping: Comfortable seating for four people which converts into two bunks with storage beneath. bed for 2 is available as an alternative no cost option. Matching upholstery and curtains to match.
  • Sink: Sink with electric water supply from 70 litre water tank with external lockable filler cap.
  • Storage: Ample storage in kitchen unit, wall cupboards, corner unit.
  • Ventilation: Three opening windows and roof vent.
  • Table: Table which folds away neatly.
  • Lighting: Large central light and additional spotlights.
  • Mirror.

Star Treka Extras

t_Large_front_window
Large Front Window
Standard Inclusion

Attractive double glazed opening front window for superior light and ventilation in the tack/living area.

t_Living_door_window
Living Door Window
Standard Inclusion

An opening window for extra light and ventilation in the living area.

t_fitted_curtains
Fitted Curtains
Standard Inclusion

Living area curtains including front and side windows.

porta_potti
Porta Potti

Portable self-contained toilet. 15 litre fresh water, 12 litre waste.

t_kitchen_unit
Kitchen Unit
Standard Inclusion
t_fold_down_table
Fold Down Table
Standard Inclusion
sh_microwave
 Convection Microwave

Benchtop mounted, 240 volt hookup required.

t_electric_water_supply
Electric Water Supply
Standard Inclusion

Comprises 70 litre under floor water tank with lockable external filler cap. Provides running water to the living area (leisure battery required).

sbhwaterheater
Water Heater / Gas Heating

Gas powered water heater and space heater to provide instantaneous Hot water (electric water supply and leisure battery required)

t_leisure_battery
Leisure Battery
Standard Inclusion

Provides independent power for interior of trailer for lights etc recharges whilst being towed, includes high capacity battery, all wiring and extra seven pin connection to towing vehicle.

sh_shower
Shower Unit

Compact shower system. Water Heater required.

t_mirror
Mirror

Acrylic mirror, fixed to grooms door.

t_seating_converts_to_bunks
Seating Bunks

Seating for four which converts into bunks for two.

t_high_gloss
High Gloss Interior

Contemporary high gloss interior, with a choice of colours

t_leather_upholstery
Leather Upholstery

High quality hard wearing luxurious leather upholstery alternative to standard fabric in seating area, available in black, brown, cream and grey.

OLYMPUS DIGITAL CAMERA
240 Volt Hook Up

Connects to mains electricity where available also includes Battery Charger for Leisure Battery.

t_12_Volt_socket
12 Volt Socket

For powering or charging 12v accessories such as a moblie phones etc.

sh_fridge
Electric Fridge

Operates from 12v or 240v electricity. 85 Litre capacity with freezer compartment (12 volt socket or 240 volt hook up required)

sh_tv_dvd_player
TV / DVD Player
sh_electric_flushing_toilet
Electric Flushing Toilet

With convenient waste cassette for easy disposal (electric water supply required)

sh_fold_down_sink
Fold Down Sink

Compact over toilet folding sink, with mixer tap and vanity unit.

t_fire_extinguisher
Fire Extinguisher

Dry powdered fire extinguisher for emergencies, including fixing bracket.

t_fire_blanket
Fire Blanket
All our fire blankets are made to British Standard specification
t_first_aid_kit
First Aid Kit

Contains a range of dressings for basic medical emergencies

t_easyclean_mat
Mat

Easy Clean Entry Mat.

t_storage_rack
Storage Rack

Useful extra storage for rugs, boots etc… can be fitted in either the horse area or tack/living area.

t_digital_camera_7inch
Digital Camera with 7inch Monitor

Wireless and waterproof camera for horse area with day and night vision. Images are displayed on a 7″ dashboard mounted colour monitor powered by 12v socket in towing vehicle (adapter included)

t_digital_reversing_camera
Digital Reversing Camera

Waterproof camera giving clear views at the back of the trailer whilst reversing. Only available as an addition to camera 7″ monitor.

t_awnings
Awning

Cassette wind out awning for shade and shelter, 2.5m.

t_openingwindow-copy5
Extra Vent Window
Standard Inclusion

An opening window for extra light and ventilation in the horse area.

t_additional_skylight_roof_vent
Additional Skylight Roof Vent

Multi-directional opening skylight for increased ventilation.

t_electric_roof_ext
Electric Roof Extractor Fan

Extracts up to 350 cubic meters of air per hour even if stationary.

t_tack_locker
Tack Locker
Standard Inclusion

Offering extra storage accessible through and external locking door, fitted with light, two saddle and two bridle racks.

t_grooms_locker
Grooms Locker
Standard Inclusion
Offering extra storage accessible through an external locking door, fitted with a shelf and a light.
t_head_divider
Head Divider
Standard Inclusion
Moulded swivelling head divider to separate horses heads.
t_white_easy_clean_safety_doors
White Easy Clean Safety Loading Doors
Standard Inclusion

White easy clean ramp safety doors.

t_padded_walls
Padded Walls

Horse comfort pack to side walls partition and rear walls.

t_padding_for_partition
Padded Partition
Standard Inclusion

Padding on both sides of partition for extra comfort.

t_extra_height_partition
Extra Height Partition

Extra 9″ high partition ideal for larger horses. Alternative to standard partition.

t_extra_Height_safety_loading_doors
Higher Safety Loading Doors

Rear safety loading doors with increased height to 6ft as alternative to standard.

t_full_depth_partitions
Full Depth Partition

Solid partition to floor alternative to standard partition.

t_collapsible_full_depth_breastbar
Collapsible Full Depth Breast Bar

7mm thick heavy duty clear PVC breast bar infill which has been designed to create a breast bar to floor barrier, but in the event of an emergency will still allow the full operation of the collapsible breast bar.

t_breast_bar
Breast Bar Solid to Floor

Full depth solid breast bar, ideal for enclosing a mare and foal or small ponies. Weight 29kg. (please note, specification may vary depending on the type of trailer/horsebox)

5633406f220d0_Page_8_Tie_Ring._m1_w152_h152_c1_b0_0_0_127_pcenter_
Extra Tie Rings

Can be positioned in most places on the trailer for ease of use.

t_Flettner_roof_vent
Flettner 2000 Roof Ventilator

Offers cost effective wind powered ventilation providing a more comfortable environment for your horse by removing excess heat, damp & stale air from the horse area.

t_hitch_cover
Hitch Cover

Water resistant cover to protect hitch and lock.

4c44411bf2129_DSCN0207.150150
Metallic Paint

Metallic paint in a colour of your choice to match the towing vehicle. Enquire for a quotation.

t_loading_light
Loading Light

Shining onto the ramp for easier loading.

t_horse_shower1
Horse Shower
Standard Inclusion

External accessible hose pipe connected to electric water supply, shower head included.

t_trailer_cover
Cover

Water resistant cover to protect trailer.
