Price starts from: $49,900 inc GST

Please Contact Us for more information

The Equi-Trek Star Treka 2 Horse Float is a spacious for your horse and has luxury overnight accommodation.
This stunning horse float features the latest in aerodynamic body styling which is unique to the ever-developing range of Equi-Trek trailers. This horse area is fitted out to a high standard with a padded partition, groom’s locker and tack locker. In conjunction with a spacious living area with options such as a Shower, Gas Heating and Gas Hot Water, bunks or a bed for 2 this trailer will make those overnight stays very comfortable.

Equi Trek Star Treka Specifications

Internal Dimensions Star Treka
External Dimensions Star Treka
Horse Area Ft.ins m Body Area Ft.ins m
Length  9’8″ 2.950 Length  20’8″ 6.300
Width  6’5″ 1.960 Width  6’9″ 2.060
Height 7’6″ 2.290 Height 9’7″ 2.930
Living Area Ft.ins m
 Length   6’9″  2.060
 Width  6’5″  1.960
Approx. Weight
Unladen Weight
(excludes fitted optional extras)
1900kg
Gross weight 3500kg

Main Body

  • Chassis: Strong galvanized steel chassis for long maintenance-free life.
  • Axles: Tri-Axle.
  • Ball Hitch: Features a built in lock including auto reverse.
  • Body: GRP body for long maintenance-free life with composite rubber kick boards in horse area.
  • Power: Internal electric power is supplied by a rechargeable high capacity leisure battery, providing independent power when not attached to the towing vehicle.
  • Suspension: Independent suspension for a comfortable ride.
  • Wheels: Six fully braked wheels with low profile tyres and spare included.
  • Floor: Aluminium plank covered with heavy duty rubber in horse area.
  • Large Front Locker: For gas bottles and extra locker storage.
  • Colours: White with graphite trim. Any other colour/graphic available at extra cost.

Horse Area

  • Partition: Fully adjustable padded partition with head divider and rubber skirt to floor.
  • Lighting: Two interior lights.
  • Grooms Door: Grooms door with pull out step.
  • Ramp doors: White easy clean safety loading doors.
  • Tack Locker: With external locking door and two saddle and bridle racks.
  • Ventilation: Five opening windows and skylight roof vent.
  • Tie rings: Two horse tie rings, two hay net tie rings and two external tie rings.
  • Ramp: Large, low gas assisted ramp for easy lifting covered with rubber matting with alloy tread rails.
  • Breast Bar: Full width padded breast bar.
  • Grooms Locker: With external locking door, shelf and horse shower hose.

Living Arena

  • Seating/Sleeping: Comfortable seating for four people which converts into two bunks with storage beneath. bed for 2 is available as an alternative no cost option. Matching upholstery and curtains to match.
  • Sink: Sink with electric water supply from 70 litre water tank with external lockable filler cap.
  • Storage: Ample storage in kitchen unit, wall cupboards, corner unit.
  • Ventilation: Three opening windows and roof vent.
  • Table: Table which folds away neatly.
  • Lighting: Large central light and additional spotlights.
  • Mirror.

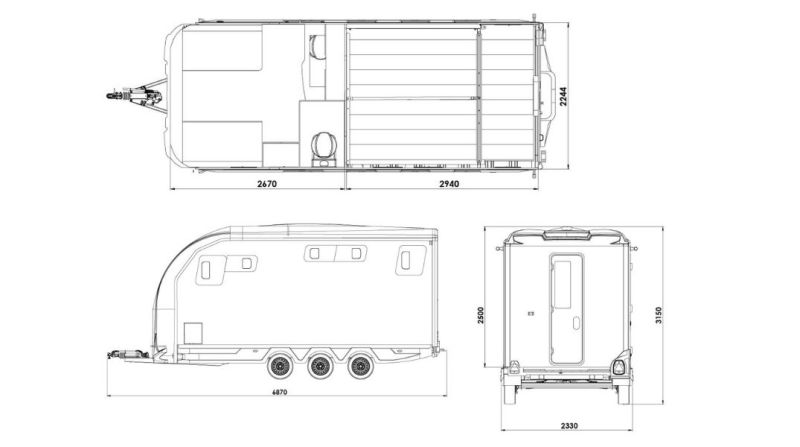

Star Treka Optional Floor Plans

Star Treka Shower Only & bed for 2 Option



Star Treka Shower, Toilet & Bunk Beds Option



Star Treka Shower Only & Bunk Beds Option



Star Treka Toilet Only & Bunk Beds Option

Star Treka Extras

Prices include gst

t_Large_front_window
Large Front Window
Standard Inclusion

Attractive double glazed opening front window for superior light and ventilation in the tack/living area.

t_Living_door_window
Living Door Window
Standard Inclusion

An opening window for extra light and ventilation in the living area.

t_fitted_curtains
Fitted Curtains
Standard Inclusion

Living area curtains including front and side windows.

porta_potti
Porta Potti $123

Portable self-contained toilet. 15 litre fresh water, 12 litre waste.

t_kitchen_unit
Kitchen Unit
Standard Inclusion
t_fold_down_table
Fold Down Table
Standard Inclusion
OLYMPUS DIGITAL CAMERA
Gas Stove $1,200

2 Burner Gas stove with glass lid with 3.7kg Bottle and Regulator.

sh_microwave
Microwave $426

Benchtop mounted, 240 volt hookup required.

t_electric_water_supply
Electric Water Supply
Standard Inclusion

Comprises 70 litre under floor water tank with lockable external filler cap. Provides running water to the living area (leisure battery required).

sbhwaterheater
Water Heater $1,900

Gas powered water heater to provide instantaneous Hot water (electric water supply and leisure battery required)

t_leisure_battery
Leisure Battery
Standard Inclusion

Provides independent power for interior of trailer for lights etc recharges whilst being towed, includes high capacity battery, all wiring and extra seven pin connection to towing vehicle.

sh_shower
Shower Unit $1,421

Compact shower system fitted in toilet area. Water Heater required.

t_mirror
Mirror $47

Acrylic mirror, fixed to grooms door.

t_seating_converts_to_bunks
Seating Bunks
Standard Inclusion

Seating for four which converts into bunks for two.

t_high_gloss
High Gloss Interior $1,066

Contemporary high gloss interior, with a choice of colours

t_leather_upholstery
Leather Upholstery $746

High quality hard wearing luxurious leather upholstery alternative to standard fabric in seating area, available in black, brown, cream and grey.

OLYMPUS DIGITAL CAMERA
240 Volt Hook Up $1,173

Connects to mains electricity where available also includes Battery Charger for Leisure Battery.

t_12_Volt_socket
12 Volt Socket $142

For powering or charging 12v accessories such as a moblie phones etc.

sh_fridge
Electric Fridge $1,540

Operates from 12v or 240v electricity. 60 Litre capacity with freezer compartment (12 volt socket or 240 volt hook up required)

sh_tv_dvd_player
TV / DVD Player  $1,303
sh_electric_flushing_toilet
Electric Flushing Toilet $1,303

With convenient waste cassette for easy disposal (electric water supply required)

sh_fold_down_sink
Fold Down Sink $1,303

Compact over toilet folding sink, with mixer tap and vanity unit.

t_fire_extinguisher
Fire Extinguisher $62

Dry powdered fire extinguisher for emergencies, including fixing bracket.

t_fire_blanket
Fire Blanket $47
All our fire blankets are made to British Standard specification
t_first_aid_kit
First Aid Kit  $47

Contains a range of dressings for basic medical emergencies

t_easyclean_mat
Mat $59

Easy Clean Entry Mat.

t_storage_rack
Storage Rack $118

Useful extra storage for rugs, boots etc… can be fitted in either the horse area or tack/living area.

t_digital_camera_7inch
Digital Camera with 7inch Monitor $616

Wireless and waterproof camera for horse area with day and night vision. Images are displayed on a 7″ dashboard mounted colour monitor powered by 12v socket in towing vehicle (adapter included)

t_digital_reversing_camera
Digital Reversing Camera $296

Waterproof camera giving clear views at the back of the trailer whilst reversing. Only available as an addition to camera 7″ monitor.

t_awnings
Awning $1,750

Cassette wind out awning for shade and shelter, 2.5m.

t_openingwindow-copy5
Extra Vent Window
Standard Inclusion

An opening window for extra light and ventilation in the horse area.

sh_black_framed_windows1
Black Framed Windows $474

Opening black framed windows.

t_additional_skylight_roof_vent
Additional Skylight Roof Vent $190

Multi-directional opening skylight for increased ventilation.

t_electric_roof_ext
Electric Roof Extractor Fan $426

Extracts up to 350 cubic meters of air per hour even if stationary.

t_tack_locker
Tack Locker
Standard Inclusion

Offering extra storage accessible through and external locking door, fitted with light, two saddle and two bridle racks.

t_grooms_locker
Grooms Locker
Standard Inclusion
Offering extra storage accessible through an external locking door, fitted with a shelf and a light.
4dccf0eb78033_62_Tinted_Windows.150150
Tinted Windows  $1,256

Dark tinted windows for added exterior style (black framed windows required)

t_head_divider
Head Divider
Standard Inclusion
Moulded swivelling head divider to separate horses heads.
t_white_easy_clean_safety_doors
White Easy Clean Safety Loading Doors
Standard Inclusion

White easy clean ramp safety doors.

t_padded_walls
Padded Walls $604

Horse comfort pack to side walls partition and rear walls.

t_padding_for_partition
Padded Partition
Standard Inclusion

Padding on both sides of partition for extra comfort.

t_extra_height_partition
Extra Height Partition $328

Extra 9″ high partition ideal for larger horses. Alternative to standard partition.

t_extra_Height_safety_loading_doors
Higher Safety Loading Doors $296

Rear safety loading doors with increased height to 6ft as alternative to standard.

t_full_depth_partitions
Full Depth Partition $355

Solid partition to floor alternative to standard partition.

t_collapsible_full_depth_breastbar
Collapsible Full Depth Breast Bar $592

7mm thick heavy duty clear PVC breast bar infill which has been designed to create a breast bar to floor barrier, but in the event of an emergency will still allow the full operation of the collapsible breast bar.

t_breast_bar
Breast Bar Solid to Floor $474

Full depth solid breast bar, ideal for enclosing a mare and foal or small ponies. Weight 29kg. (please note, specification may vary depending on the type of trailer/horsebox)

5633406f220d0_Page_8_Tie_Ring._m1_w152_h152_c1_b0_0_0_127_pcenter_
Extra Tie Rings $24

Can be positioned in most places on the trailer for ease of use.

t_Flettner_roof_vent
Flettner 2000 Roof Ventilator $332

Offers cost effective wind powered ventilation providing a more comfortable environment for your horse by removing excess heat, damp & stale air from the horse area.

t_loading_light
Loading Light $225

Shining onto the ramp for easier loading.

t_horse_shower1
Horse Shower
Standard Inclusion

External accessible hose pipe connected to electric water supply, shower head included.

t_trailer_cover
Cover $829

Water resistant cover to protect trailer.

t_lined_roof
Lined Roof $959

Insulated double lined roof in horse area.

t_sulky_brackets
Sulky Brackets $272

Fitted to rear of the trailer for carrying sulky.

t_wheel_clamp
Wheel Clamp $235

Equi-Trek’s own wheel clamp especially designed to fot all Equi-Trek trailers. Secure and easy to fit.

t_hitch_cover
Hitch Cover $36

Water resistant cover to protect hitch and lock.

4c44411bf2129_DSCN0207.150150
Metallic Paint From $3,672

Metallic paint in a colour of your choice to match the towing vehicle. Enquire for a quotation.
